High Grade Aluminium Slide
standard lengths 300 mm to 1.000 mm in 50 mm increments
RoHS compliant

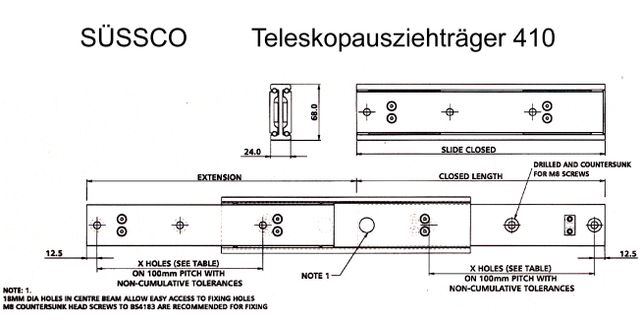

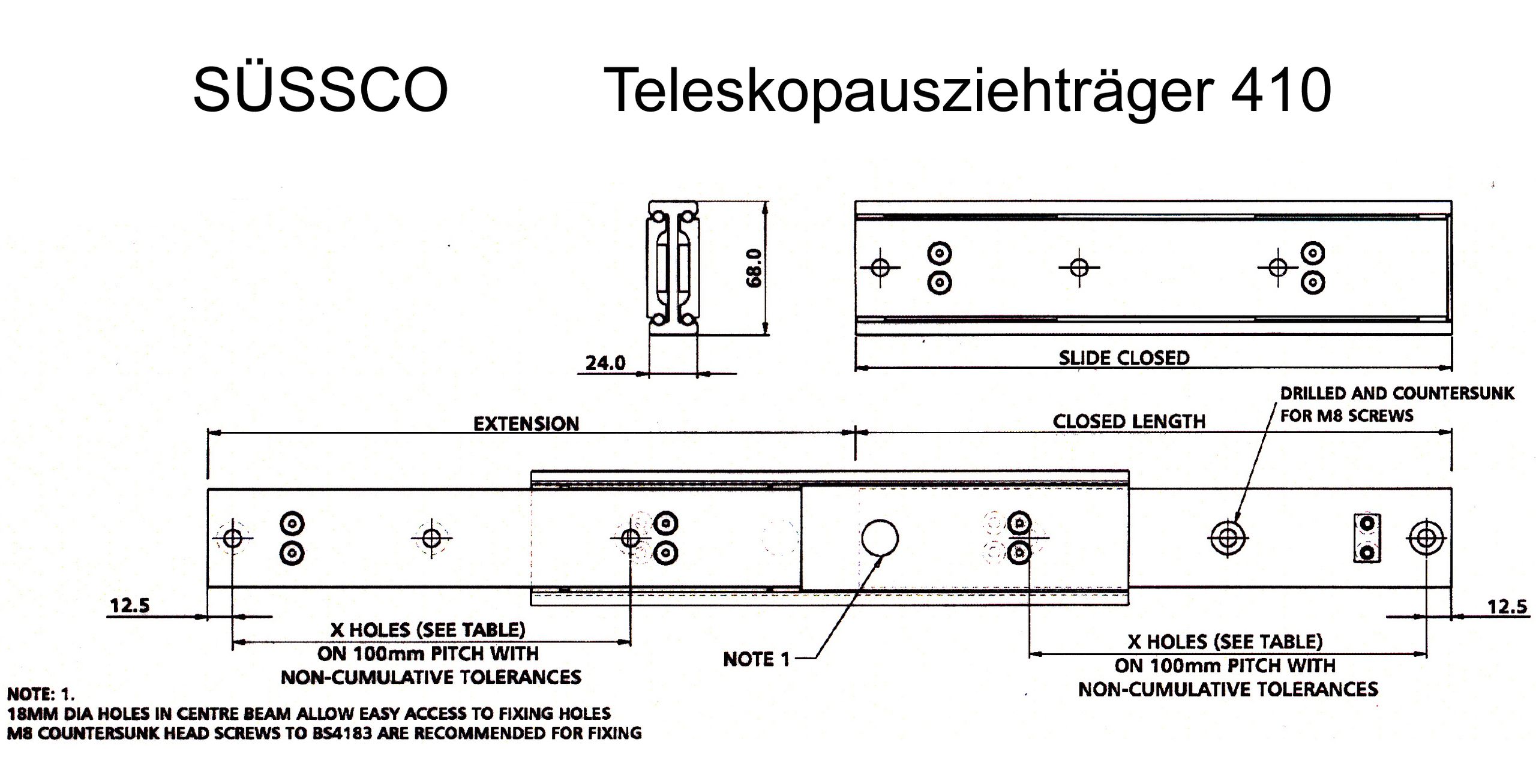

Standard Lengths 410 Slide(all dimension in mm) Model 410 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| closed length | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1000 |
| extension | 325 | 375 | 425 | 475 | 525 | 575 | 625 | 675 | 725 | 775 | 825 | 875 | 925 | 975 | 1025 |
| No.holes in each beam | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 | 8 | 8 | 9 | 9 | 10 | 10 |
